Clock Inserts Fitups

Clock Inserts or clock Fitups are pre-assembled clock parts sold with the hands, dial, lens and bezel already made and ready to fit into a pre-drilled hole in your clock case. Quartz Clock inserts are listed by the outside diameter, or edge to edge size of the part. Mounting hole sizes will vary and are listed with each part.

Clock Inserts Fitups
Clock Inserts or Clock Fitups are pre-assembled clock parts sold with the hands, dial, lens and bezel already made and ready to fit into a pre-drilled hole in your clock case. All of these parts are listed by the outside diameter, or edge to edge size of the part. Mounting hole sizes will vary and are listed with each part with a detailed installation drawing.

What are Clock Inserts

Clock inserts or clock fitups are pre assembled quartz clocks replacements that include the clock movement, dial, hands, lens and bezel already fully assembled and ready to install in your clock case. All insert clocks are listed based on the outside diameter, or edge to edge size of the visible part. The mounting hole sizes will vary and are listed with each part.

Fit Ups 1 Inch Range

FitUps One Inch Range is comprised of two groups of 1-7/16 inch diameter, both of which will install into a common 1-3/8 inch hole size. The Standard category consists of 8 models with either Roman, Arabic or bold Arabic numbers and gold bezels.

The Designer group consists of 5 models with unique dials and black, gold or antique bronze bezels. All of these models also fit into a 1-3/8 inch mounting hole size. Also available are thermometers and hygrometers with white dials, and gold bezels. These also fit into a 1-3/8 inch mounting hole size. These insert clocks all use Seiko PC21 watch movements and use a common #377 battery, which is included.

Fit Ups 2 Inch Range

Fit Ups Two Inch Range includes our 2 inch standard inserts and photo frames that fit into a 1-7/8 inch mounting hole size. We also have 2 inch premium inserts that have solid brass cases and fit into 1/3/8 inch mounting holes. All of these inserts use a Seiko PC21 watch movements with a common #377 battery, which is included.

The next size is our 2-1/4 inch. There are 7 different dials with a choice of gold, black or silver bezels. That’s a lot to choose from. These 2-1/4 inch operate on one common AAA battery and fit into a 2-1/8 inch mounting hole size.

The 2-3/4 inch Economy are one of our most popular sizes. Again there are 7 different dials with a choice of gold, black or silver bezels. That’s a lot to choose from. These 2-3/4 inch inserts operate on one common AAA battery and fit into a 2-3/8 inch mounting hole size.

We are also introducing a new premium line of 2-3/4 inch. With a choice of 5 popular dials they all feature a polished solid brass bezel and a curved glass lens. They operate on a common AAA battery and use the popular 2-3/8 inch mounting hole size.

Inserts 3 Inch Range

Another large category of insert clocks is Fit Ups Three Inch Range. Starting with our 3-1/16 inch back mounted inserts. This is one of the few insert clocks available that is designed to be mounted from the back of your case.

It’s sister part is the 3-1/4 inch front mounted inserts available with gold, black or matte silver bezels. Both models fit into a 3-1/8 inch mounting hole size.

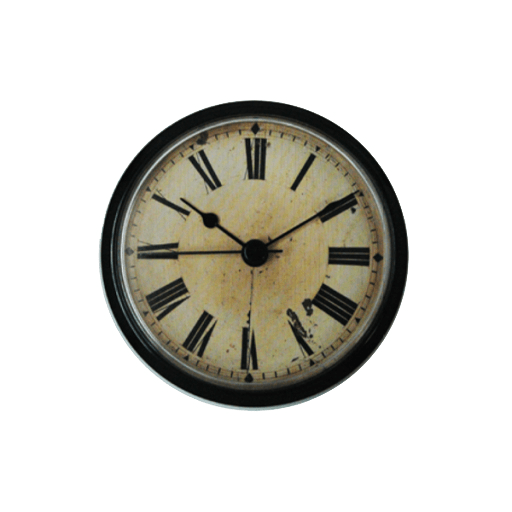

We also have our 3-1/2 inch size that fits into a 3 inch hole. The standard series features 7 different clock dials available with a choice of gold, black or silver bezels. We also offer 3 new versions with Antique dials. We are also introducing a new premium line of 3-1/2 inch inserts.

With a choice of 5 popular dials they all feature a polished solid brass bezel and a curved glass lens. They operate on a common AA battery and use the popular 3-1/8 inch mounting hole size.

Finally, we offer our 3-7/8 inch economy items. We offer them in With a 7 dials, operating on one common AA battery, and using a common 3-1/8 inch mounting hole size. Combine your project with some of our other items available from our home page.

Inserts 4 Inch Range

Our largest size insert clocks is the Fit Ups Four Inch Range. We start with our 4 inch economy which operate on one AA battery and fit into a 2-3/8” mounting hole. We offer two new premium sizes; 4-1/8” and 6 inch.

Each new size has a choice of 5 popular dials, and they all feature a polished solid brass bezel and a curved glass lens. They both operate on a common AA battery and use the popular 3-1/8 inch mounting hole size.

The weather instrument category includes our line of “Shower Proof” 1-7/16 inch thermometers and matching insert clocks. We then graduate to our lines of 2-3/4 inch and 3-1/2” individual weather instruments. Barometers, thermometers and hygrometers are available in both sizes with either gold or ivory dials. Matching parts are available for the 2-3/4 inch size.

Our popular tide inserts are available now in the new 3-1/2 and 6 inch sizes, using the same cases as our new premium Inserts. Available with a wide variety of process color dials, they feature polished solid brass bezels and curved glass lenses. They operate on one AA battery and fit into a 3-1`/8 inch mounting hole size.

The accessories group consists of a watch chain and a mounting stud both used for making wood pocket watches.

These woodworking clock fitups are a excellent choice for any project you have in mind. Get yours TODAY!
